Parker Hannifin 1/4" Port Brass Two-Way Direct Acting Solenoid Valve Normally Closed 04F20C1108A1F - 68014109
Brand: Parker Hannifin Corporation- SKU:
- 68014109
- ID:
- 548129
$121.23

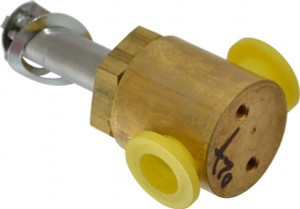

Parker Hannifin 1/4" Port Brass Two-Way Direct Acting Solenoid Valve Normally Closed
Manufacturer Part #: 04F20C1108A1F
S/N: 68014109
UNSPSC: 40141605
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Valve Type | Direct Acting |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 12Vdc, 120Vdc, 120/60 to 110/50Vac, 24Vdc, 24/60Vac, 240/60 to 220/50Vac |
| Maximum Working Pressure (Psi - 3 Decimals) | 65 |
| Cv Factor Nc | 0.3500 |
| Overall Height (Decimal Inch) | 3.0156 |
| Orifice Size (Decimal Inch) | 0.1250 |
| Orifice Size | 1/8 |
| Standards | CSA Certified, NEMA 4X, UL Listed |
| Coil Included | Yes |
| Special Item Information | Solenoid coils not included |
| Applications | Fluids, Gases, Light Oils |
| Wattage | 9.5 |
| ASCO Number | 8262G2 |
| Minimum Operating Pressure Differential | 0 |
| Maximum Temperature (F) ( - 0 Decimals) | 120 |
| Type Of Power | DC |
| Maximum Temperature (C) | 120 |
