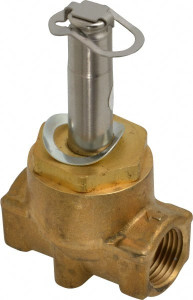

Parker Hannifin 3/8" Port Brass Two-Way Piloted Diaphragm Solenoid Valve Normally Closed 06F25C2122CAF - 68014141
Brand: Parker Hannifin Corporation- SKU:
- 68014141
- ID:
- 548183
$193.66
Parker Hannifin 3/8" Port Brass Two-Way Piloted Diaphragm Solenoid Valve Normally Closed
Manufacturer Part #: 06F25C2122CAF
S/N: 68014141
UNSPSC: 40141605
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Valve Type | Two-Way Piloted Diaphragm |
| Port Size | 3/8 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 12Vdc, 120Vdc, 120/60 to 110/50Vac, 24Vdc, 24/60Vac, 240/60 to 220/50Vac |
| Maximum Working Pressure (Psi - 3 Decimals) | 300 |
| Cv Factor Nc | 1.2000 |
| Overall Height (Decimal Inch) | 1.9375 |
| Overall Length (Decimal Inch) | 2.4688 |
| Orifice Size (Decimal Inch) | 0.3438 |
| Standards | CSA Certified, NEMA 4X, UL Listed |
| Cv Rating | 1.200 |
| Coil Included | Yes |
| Special Item Information | Solenoid coils not included |
| Applications | Fluids, Gases, Light Oils |
| Wattage | 6 |
| ASCO Number | 8210G21 |
| Minimum Operating Pressure Differential | 5 |
| Maximum Temperature (F) ( - 0 Decimals) | 180 |
| Type Of Power | AC |
| Maximum Temperature (C) | 180 |
