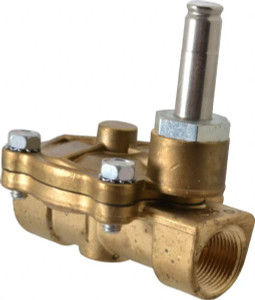

Parker Hannifin 3/4" Port Brass Two-Way Piloted Diaphragm Solenoid Valve Normally Closed 12F24C2148A3F - 68014471
Brand: Parker Hannifin Corporation- SKU:
- 68014471
- ID:
- 548196
$512.62
Parker Hannifin 3/4" Port Brass Two-Way Piloted Diaphragm Solenoid Valve Normally Closed
Manufacturer Part #: 12F24C2148A3F
S/N: 68014471
UNSPSC: 40141605
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Valve Type | Two-Way Piloted Diaphragm |
| Port Size | 3/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 12Vdc, 120Vdc, 120/60 to 110/50Vac, 24Vdc, 24/60Vac, 240/60 to 220/50Vac |
| Maximum Working Pressure (Psi - 3 Decimals) | 125 |
| Cv Factor Nc | 6.5000 |
| Overall Length (Decimal Inch) | 3.8750 |
| Orifice Size (Decimal Inch) | 0.7500 |
| Orifice Size | 3/4 |
| Standards | CSA Certified, NEMA 4X, UL Listed |
| Cv Rating | 6.500 |
| Coil Included | Yes |
| Special Item Information | Solenoid coils not included |
| Applications | Fluids, Gases, Light Oils |
| Wattage | 11.5 |
| ASCO Number | 8210G3 |
| Minimum Operating Pressure Differential | 5 |
| Maximum Temperature (F) ( - 0 Decimals) | 150 |
| Type Of Power | DC |
| Maximum Temperature (C) | 150 |
