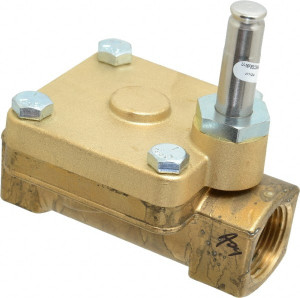

Parker Hannifin 1" Port Brass Two-Way Piloted Diaphragm Solenoid Valve Normally Closed 16FS5C2464ACH - 68014687
Brand: Parker Hannifin Corporation- SKU:
- 68014687
- ID:
- 548040
$752.08
Parker Hannifin 1" Port Brass Two-Way Piloted Diaphragm Solenoid Valve Normally Closed
Manufacturer Part #: 16FS5C2464ACH
S/N: 68014687
UNSPSC: 40141605
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Valve Type | Direct Acting |
| Port Size | 1 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | Polytetrafluroethylene |
| Voltage | 12Vdc, 120Vdc, 120/60 to 110/50Vac, 24Vdc, 24/60Vac, 240/60 to 220/50Vac |
| Maximum Working Pressure (Psi - 3 Decimals) | 125 |
| Cv Factor Nc | 12.2000 |
| Overall Height (Decimal Inch) | 4.7100 |
| Overall Length (Decimal Inch) | 4.4200 |
| Orifice Size (Decimal Inch) | 1.0000 |
| Orifice Size | 1 |
| Standards | CSA Certified, NEMA 4X, UL Listed |
| Coil Included | Yes |
| Special Item Information | Solenoid coils not included |
| Applications | Hot Water/Steam |
| Wattage | 11 |
| Minimum Operating Pressure Differential | 1 |
| Maximum Temperature (F) ( - 0 Decimals) | 353 |
| Type Of Power | AC |
| Maximum Temperature (C) | 353 |
For more info, visit www.p65warnings.ca.gov.
