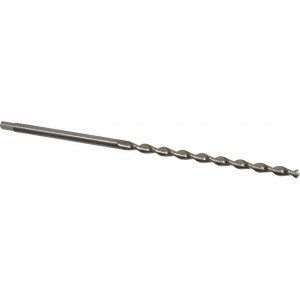

Cleveland Twist Drill 3/16" 118° Parabolic Flute High Speed Steel Taper Length Drill Bit Bright Finish, 3-3/8" Flute Length, 5-3/4" OAL, Notched Point, Tanged Shank, Series 2565 C16066 - 68298868
Brand: Cleveland Twist Drill- SKU:
- 68298868
- ID:
- 744463
$14.82
Cleveland Twist Drill 3/16" 118° Parabolic Flute High Speed Steel Taper Length Drill Bit Bright Finish, 3-3/8" Flute Length, 5-3/4" OAL, Notched Point, Tanged Shank, Series 2565
Manufacturer Part #: C16066
S/N: 68298868
UNSPSC: 23241600
UPC: 697334160663
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Tool Material | High-Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Notched |
| Coolant Through | No |
| Shank Type | Tanged |
| Threaded Shank | No |
| Shank Diameter (Inch) | 3/16 |
| Material Application3 | Alloy Steel, Aluminum, Carbon Steel, Copper Alloy, Non-Ferrous Metal, Stainless Steel |
| Overall Length (mm) | 146.05 |
| Overall Length (Decimal Inch) | 5-3/4 |
| Series | 2565 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Length (Decimal Inch) | 2.3750 |
| Shank Length (mm) | 60.32 |
| Flute Length (Inch) | 3-3/8 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | ASME B94.11M |
