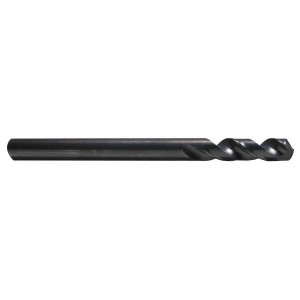

Cleveland Twist Drill #24 135° Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/8" OAL, Split Point C15923 - 68302645
Brand: Cleveland Twist Drill- SKU:
- 68302645
- ID:
- 718043
$6.40
Cleveland Twist Drill #24 135° Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/8" OAL, Split Point
Manufacturer Part #: C15923
S/N: 68302645
UNSPSC: 23241634
UPC: 697334159230
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #24 |
| Drill Bit Size (Decimal Inch) | 0.1520 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Superalloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Oxide |
| Flute Length (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 0.1520 |
| Overall Length (Inch) | 3-1/8 |
| Spiral Type | Fast |
| Flute Length (mm) | 25.40 |
| Flute Length (Decimal Inch) | 1.0000 |
| Series | 3780 |
| Shank Length (Inch) | 2-1/8 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | ASME B94.11M |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
