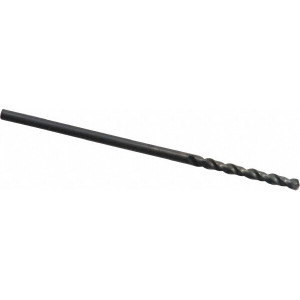

Cleveland Twist Drill #49 135° Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2" OAL, Split Point C15893 - 68302918
Brand: Cleveland Twist Drill- SKU:
- 68302918
- ID:
- 717909
$5.82
Cleveland Twist Drill #49 135° Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2" OAL, Split Point
Manufacturer Part #: C15893
S/N: 68302918
UNSPSC: 23241634
UPC: 697334158936
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #49 |
| Drill Bit Size (Decimal Inch) | 0.0730 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Superalloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Oxide |
| Flute Length (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.0730 |
| Overall Length (mm) | 50.80 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Spiral Type | Fast |
| Series | 3780 |
| Shank Length (Inch) | 1-5/16 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | ASME B94.11M |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
