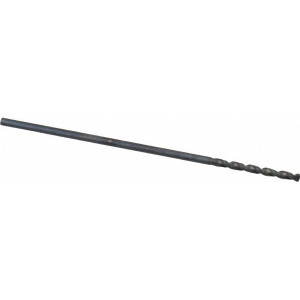

Cleveland Twist Drill 3/64" 135° Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-3/4" OAL, Split Point C15885 - 68303320
Brand: Cleveland Twist Drill- SKU:
- 68303320
- ID:
- 718094
$6.83
Cleveland Twist Drill 3/64" 135° Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-3/4" OAL, Split Point
Manufacturer Part #: C15885
S/N: 68303320
UNSPSC: 23241634
UPC: 697334158851
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 3/64 |
| Drill Bit Size (Decimal Inch) | 0.0469 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Superalloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Oxide |
| Flute Length (Inch) | 1/2 |
| Overall Length (mm) | 44.45 |
| Overall Length (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 1.7500 |
| Spiral Type | Fast |
| Flute Length (mm) | 12.70 |
| Flute Length (Decimal Inch) | 0.5000 |
| Series | 3780 |
| Shank Diameter (Inch) | 3/64 |
| Shank Length (Inch) | 1-1/4 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | ASME B94.11M |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0000 - 0.0500 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
