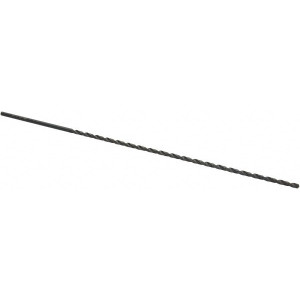

Cleveland Twist Drill 1/8" 118° 2-Flute High Speed Steel Extra Length Drill Bit Oxide Finish, 7-1/2" Flute Length, 10" OAL, 1/8" Shank Diam, Series 950E C09707 - 68308360
Brand: Cleveland Twist Drill- SKU:
- 68308360
- ID:
- 708830
$34.65
Cleveland Twist Drill 1/8" 118° 2-Flute High Speed Steel Extra Length Drill Bit Oxide Finish, 7-1/2" Flute Length, 10" OAL, 1/8" Shank Diam, Series 950E
Manufacturer Part #: C09707
S/N: 68308360
UNSPSC: 23241637
UPC: 697334097075
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 1/8 |
| Overall Length (Inch) | 10 |
| Tool Material | High-Speed Steel |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Drill Point Angle | 118 |
| Flute Length (Inch) | 7-1/2 |
| Flute Length (mm) | 190.50 |
| Point Type | Standard |
| Series | 950E |
| Cutting Direction | Right Hand |
| Tool Application | Deeper Drilling, Long Reach Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Cast Iron, Steel |
| Secondary Workpiece Material | Cast Iron |
| Standards | ASME B94.11M, California PROP 65 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Length (Decimal Inch) | 5.0000 |
| Shank Length (mm) | 63.50 |
| Flute Length (Decimal Inch) | 7.5000 |
| Specification Designation | ANSI |
