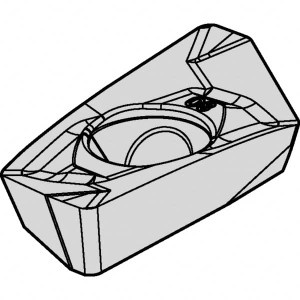

Kennametal EP1808E KCPM40 Carbide Milling Insert TiAlN/AlCrN Finish, 0.857" Long x 0.2165" Thick x 0.432" Wide 5545399 - 68466317
Brand: Kennametal- SKU:
- 68466317
- ID:
- 661435
$33.01
Kennametal EP1808E KCPM40 Carbide Milling Insert TiAlN/AlCrN Finish, 0.857" Long x 0.2165" Thick x 0.432" Wide
Manufacturer Part #: 5545399
S/N: 68466317
UNSPSC: 23291601
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | EDPT |
| Insert Size | 18 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KCPM40 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2165 |
| Coating/Finish | TiAlN, AlCrN |
| Relief Angle | 15 |
| Insert Size Code | 1808 |
| Inscribed Circle (Decimal Inch) | 0.4320 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | EDPT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | EP1808E |
| Iso Code | EDPT180508PDERGD |
| Standards | ANSI, ISO |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | EDPT180508PDERGD |
| Cutter Series Compatibility | Mill 1-18 |
| Chip Breaker | GD |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.4320 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8570 |
