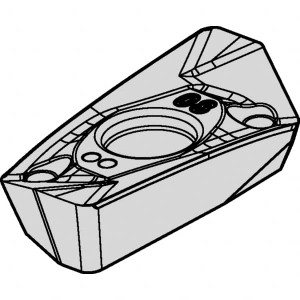

Kennametal EP1408EHD KCPM40 Carbide Milling Insert TiAlN/AlCrN Finish, 0.688" Long x 0.1772" Thick x 0.33" Wide 5545160 - 68467786
Brand: Kennametal- SKU:
- 68467786
- ID:
- 661092
$31.77
Kennametal EP1408EHD KCPM40 Carbide Milling Insert TiAlN/AlCrN Finish, 0.688" Long x 0.1772" Thick x 0.33" Wide
Manufacturer Part #: 5545160
S/N: 68467786
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | EDPT |
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KCPM40 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1772 |
| Coating/Finish | TiAlN, AlCrN |
| Relief Angle | 15 |
| Insert Size Code | 1408 |
| Length (Inch) | 11/16 |
| Inscribed Circle (Decimal Inch) | 0.3298 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Series | EDPT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.13 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | EP1408EHD |
| Iso Code | EDPT140408PDERHD |
| Standards | ANSI, ISO |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | EDPT140408PDERHD |
| Cutter Series Compatibility | Mill 1-14 |
| Chip Breaker | HD |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.3300 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6878 |
