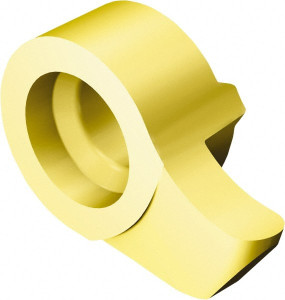

Sandvik Coromant MB09R200-10-14R 1025 Carbide Grooving Insert TiAlN/TiN Finish, RH, 2mm Cutting Width, 4.01mm Max Depth, Series CoroCut MB 5735843 - 68482157
Brand: Sandvik Coromant- SKU:
- 68482157
- ID:
- 651049
$48.01
Sandvik Coromant MB09R200-10-14R 1025 Carbide Grooving Insert TiAlN/TiN Finish, RH, 2mm Cutting Width, 4.01mm Max Depth, Series CoroCut MB
Manufacturer Part #: 5735843
S/N: 68482157
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | MB.. |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1580 |
| Maximum Depth of Cut (mm) | 4.01 |
| Insert Material | Solid Carbide |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Rake | Positive |
| Insert Size | 09 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Maximum Depth Of Cut Range (mm) | 4.00 to 5.00 |
| Multi-use Tool | Yes |
| Series | CoroCut MB |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.2090 |
| Iso Code | MB-09R200-10-14R 1025 |
| Minimum Corner Radius (Decimal Inch) | 0.0394 |
| Manufacturers Catalog Number | MB-09R200-10-14R 1025 |
| UNSPSC Code | 23242105 |
| Chip Breaker | R |
| Insert Seat Size | 09 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0790 |
| Coating/Finish | TiAlN/TiN |
