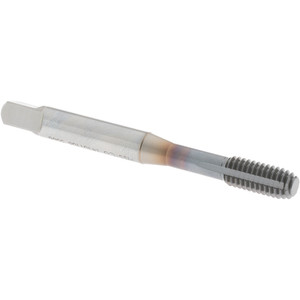

OSG Thread Forming Tap: M6x1.00 Metric Coarse, Modified Bottoming, Cobalt, TiCN Coated 1" Thread Length, D14, Series 14101 1410110608 - 68562586
Brand: OSG USA, INC.- SKU:
- 68562586
- ID:
- 783195
$24.27
OSG Thread Forming Tap: M6x1.00 Metric Coarse, Modified Bottoming, Cobalt, TiCN Coated 1" Thread Length, D14, Series 14101
Manufacturer Part #: 1410110608
S/N: 68562586
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M6x1 |
| Thread Standard | Metric Coarse |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2-2.5P |
| Material | Cobalt |
| Coating/Finish | Bright |
| Coolant Through | No |
| Thread Limit | D14 |
| Overall Length (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 63.50 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.4724 |
| Thread Length (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Shank Diameter (mm) | 6.48 |
| Square Length (mm) | 7.94 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14101 |
| Tapping Depth (Decimal Inch) | 1.0000 |
| Tapping Depth (mm) | 25.40 |
| Square Size (Decimal Inch) | 0.1929 |
| Square Size (mm) | 4.85 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
