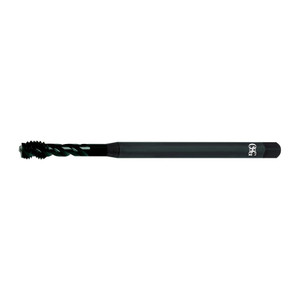

OSG Extension Tap: 1/4-28, 3 Flutes, H3, Oxide Finish, Vanadium High Speed Steel, Spiral Flute Bottoming, 6" OAL, 1-1/2" Thread Length, 3B Class of Fit 0144201 - 68572064
Brand: OSG USA, INC.- SKU:
- 68572064
- ID:
- 766348
$89.83
OSG Extension Tap: 1/4-28, 3 Flutes, H3, Oxide Finish, Vanadium High Speed Steel, Spiral Flute Bottoming, 6" OAL, 1-1/2" Thread Length, 3B Class of Fit
Manufacturer Part #: 0144201
S/N: 68572064
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tap Type | Spiral Flute |
| Thread Size (Inch) | 1/4-28 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Length (Decimal Inch) | 0.397637795275591 |
| Thread Length (Inch) | 1-1/2 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Chamfer | Bottoming |
| Material | Vanadium High-Speed Steel |
| Material Application | Hardened Steel, Low-Carbon Steel, Medium-Carbon Steel, Stainless Steel |
| Shank Diameter (Decimal Inch) | 0.255 |
| Application | Threading |
| Square Size (Decimal Inch) | 0.191 |
| Reduced Shank | Yes |
| Series | 398 |
| Helix Angle | 30 |
| Flute Direction | Right Hand |
| Neck Length (Decimal Inch) | 1.4960 |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Square Length (Decimal Inch) | 0.3125 |
