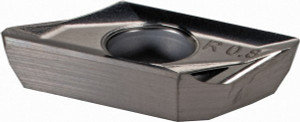

Kennametal ZDET16M508FR-721 GH1 Carbide Milling Insert 0.197" Thick x 0.445" Wide 5665949 - 68750371
Brand: Kennametal- SKU:
- 68750371
- ID:
- 661220
$47.02
Kennametal ZDET16M508FR-721 GH1 Carbide Milling Insert 0.197" Thick x 0.445" Wide
Manufacturer Part #: 5665949
S/N: 68750371
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | ZDET |
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | GH1 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1970 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 15 |
| Insert Size Code | 16M508 |
| Material Grade | Micrograin |
| Length (Inch) | 29/32 |
| Inscribed Circle (Decimal Inch) | 0.4430 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.9000 to 1.0000 |
| Insert Hand | Right Hand |
| Series | ZDET |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal |
| Primary Workpiece Material Code | K, N |
| Ansi Code | ZDET16M508FR721 |
| Iso Code | ZDET16M508FR721 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | ZDET16M508FR721 |
| Cutter Series Compatibility | 5720VZD16 |
| Chip Breaker | 721 |
| Material Application | Cast Iron, Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4450 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.9060 |
