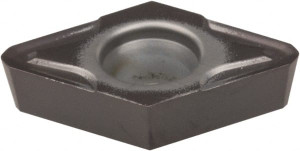

Kennametal DPMT2152FW KCU10 Carbide Turning Insert AlTiN Finish, 1/4" Inscribed Circle, 1/32" Corner Radius, 55° Diamond 4045283 - 69259703
Brand: Kennametal- SKU:
- 69259703
- ID:
- 672794
$30.84
Kennametal DPMT2152FW KCU10 Carbide Turning Insert AlTiN Finish, 1/4" Inscribed Circle, 1/32" Corner Radius, 55° Diamond
Manufacturer Part #: 4045283
S/N: 69259703
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 11 |
| Insert Style | DPMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 55 |
| Manufacturer Grade | KCU10 |
| Coating/Finish | TiAlN |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | Screw-On |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2033 |
| Maximum Depth of Cut (Fractional Inch) | 13/64 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6104 |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Iso Code | DPMT070208FW |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 4045283 |
| Material Grade | C3, C4 |
| Coating Classification | PVD |
| Chip Breaker | FW |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Industry Standard Number | DPMT2152FW |
| Width (Decimal Inch - 4 Decimals) | 0.25 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring, Back Turning, Back Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2152 |
