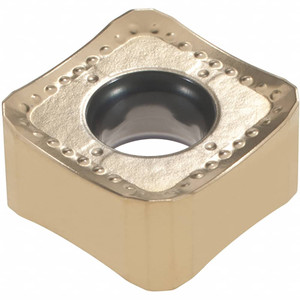

Ingersoll Cutting Tools SNGU Grade IN2530 Carbide Milling Insert 90° Square 5849014 - 69457091
Brand: Ingersoll Cutting Tools- SKU:
- 69457091
- ID:
- 659919
$30.40
Ingersoll Cutting Tools SNGU Grade IN2530 Carbide Milling Insert 90° Square
Manufacturer Part #: 5849014
S/N: 69457091
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SNGU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IN2530 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | TiAlN, TiN |
| Relief Angle | 0 |
| Insert Size Code | 1205 |
| Material Grade | Coarse Grain |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | SNGU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | SNGU1205ENN J IN2530 |
| Iso Code | SNGU1205ENN J IN2530 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 5849014 |
| Cutter Series Compatibility | 1DD1H, DD6H, DL5H, DN5H |
| Chip Breaker | None |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
