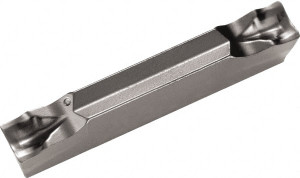

KYOCERA GDM3020N025PM PR1225 Carbide Grooving Insert Megacoat Finish, Neutral, 3mm Cutting Width, Series GD 8833042 - 69558104
Brand: KYOCERA- SKU:
- 69558104
- ID:
- 650880
$31.74
KYOCERA GDM3020N025PM PR1225 Carbide Grooving Insert Megacoat Finish, Neutral, 3mm Cutting Width, Series GD
Manufacturer Part #: 8833042
S/N: 69558104
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GDM |
| Insert Size Code | 3020 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Hand | Neutral |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1225 |
| Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.25 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 3020 |
| Material Grade | Micrograin |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Multi-use Tool | Yes |
| Series | GD |
| Coating Process | PVD |
| Rake Angle | 3.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 20.00 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | GDM3020N025PMPR1225 |
| Iso Code | GDM3020N025PM |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | GDM3020N-025PM |
| Insert Thickness (Decimal Inch) | 0.0906 |
| Chip Breaker | PM |
| Coating/Finish | Megacoat |
| Insert Thickness | 2.00 |
