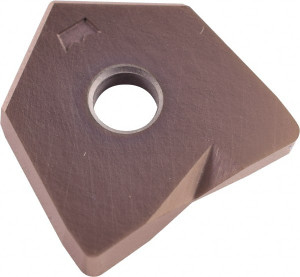

Millstar Milling Insert BDS-0750-N02 HSN CARB MILLING INSERT BDS0750N02HSN - 69638807
Brand: Millstar- SKU:
- 69638807
- ID:
- 661645
$36.62
Millstar Milling Insert BDS-0750-N02 HSN CARB MILLING INSERT
Manufacturer Part #: BDS0750N02HSN
S/N: 69638807
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | BDS |
| Insert Size | 0750 |
| Insert Material | Solid Carbide |
| Insert Shape | Bull Nose |
| Manufacturer Grade | HSN |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 1 |
| Coating/Finish | Nano |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Insert Size Code | 0750 |
| Width (Inch) | 3/4 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Corner Radius (Inch) | 1/32 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | BDS |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Ansi Code | BDS-0750-N02 |
| Iso Code | BDS-0750-N02 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Ground |
| Manufacturers Catalog Number | BDS-0750-N02 |
| Cutter Series Compatibility | CYF, TAF, TAV, CY, TA, CBCYF, CBTA |
| Chip Breaker | None |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5400 |
