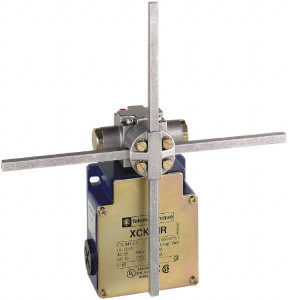

Telemecanique Sensors 4P, 2NC, 240 VAC, Screw Terminal, Rotary Spring Return Actuator, General Purpose Limit Switch IP66 IPR Rating XCKMR54D1 - 69670149

Telemecanique Sensors 4P, 2NC, 240 VAC, Screw Terminal, Rotary Spring Return Actuator, General Purpose Limit Switch IP66 IPR Rating XCKMR54D1 - 69670149

Brand:   Telemecanique Sensors
SKU:
69670149
ID:
593376
callling
$817.46
Current Stock:
Adding to cart… The item has been added

Telemecanique Sensors

Telemecanique Sensors 4P, 2NC, 240 VAC, Screw Terminal, Rotary Spring Return Actuator, General Purpose Limit Switch IP66 IPR Rating

Manufacturer Part #: XCKMR54D1

S/N: 69670149

UNSPSC: 39122209

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Actuator TypeRotary Spring Return
Actuator LocationSide
Body MaterialZamak
Actuator Length (Decimal Inch)5.0000
Voltage240V ac
Contact Form4P
Contact Configuration2NC
Terminal TypeScrew
Connection TypePG13
Ingress Protection RatingIP66
Minimum Operating Temperature-13F
Maximum Operating Temperature158F
Overall Width (mm)200.00
Overall Depth (Mm)59.00
StandardsCSA C22.2 No. 14, EN/IEC 60529, EN/IEC 60947-5-1, UL 508
