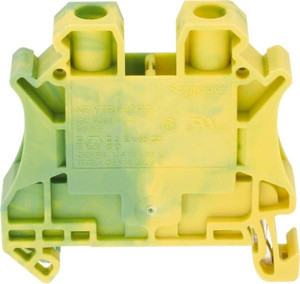

Schneider Electric 1 Pole, 1,000 Volt, -40 to 266°F, DIN Rail Mount, Polyamide Grounding Terminal Block 2 Contacts, 24 to 8 AWG Compatibility, 47-1/2mm High NSYTRV62PE - 69680015
Brand: Schneider Electric- SKU:
- 69680015
- ID:
- 591201
$11.15
Schneider Electric 1 Pole, 1,000 Volt, -40 to 266°F, DIN Rail Mount, Polyamide Grounding Terminal Block 2 Contacts, 24 to 8 AWG Compatibility, 47-1/2mm High
Manufacturer Part #: NSYTRV62PE
S/N: 69680015
UNSPSC: 39121410
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Block Type | Grounding |
| Mounting Type | DIN Rail |
| Voltage | 1000V |
| Number of Contacts | 2, 2 |
| Number of Poles | 1, 1 |
| Number of Rows | 1, 1 |
| Maximum Compatible Wire Size (AWG) | 8AWG |
| Maximum Compatible Wire Size (sq mm) | 10 |
| Minimum Compatible Wire Size (AWG) | 24AWG |
| Minimum Compatible Wire Size (sq mm) | 0.20 |
| Overall Width | 8.20mm |
| Block Material | Polyamide |
| Block Color | Green, Yellow |
| Maximum Operating Temperature (F) | 266.0 F |
| Minimum Operating Temperature (F) | -40.0 F |
| Overall Height (mm) | 47-1/2 |
| Overall Length (Decimal Inch) | 47.70mm |
| Overall Length (mm) | 47.70 |
| Overall Width (mm) | 8.20 |
| Standards Met | ATEX, CSA, DNV, GL, GOSTVDE 0304-T21, IEC 60216-1, IECEx, LR, RoHS Compliant, UL, VDE |
| UNSPSC Code | 39121410 |
