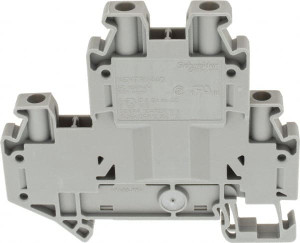

Schneider Electric 2 Poles, 800 Volt, 36 Amp, -40 to 266°F, DIN Rail Mount, Polyamide Passthrough Terminal Block 4 Contacts, 26 to 10 AWG Compatibility, 65mm High NSYTRV44D - 69680031
Brand: Schneider Electric- SKU:
- 69680031
- ID:
- 591199
$6.08
Schneider Electric 2 Poles, 800 Volt, 36 Amp, -40 to 266°F, DIN Rail Mount, Polyamide Passthrough Terminal Block 4 Contacts, 26 to 10 AWG Compatibility, 65mm High
Manufacturer Part #: NSYTRV44D
S/N: 69680031
UNSPSC: 39121410
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Block Type | Passthrough |
| Mounting Type | DIN Rail Mount |
| Voltage | 800 V |
| Amperage | 36 |
| Number of Contacts | 4 |
| Number of Poles | 2 |
| Number of Rows | 2 |
| Maximum Compatible Wire Size (AWG) | 10 |
| Maximum Compatible Wire Size (sq mm) | 6 |
| Minimum Compatible Wire Size (AWG) | 26 |
| Minimum Compatible Wire Size (sq mm) | 0.14 |
| Block Material | Polyamide |
| Block Color | Gray |
| Maximum Operating Temperature (F) | 266 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (mm) | 65 |
| Overall Length (mm) | 69.90 |
| Overall Width (mm) | 6.20 |
| Standards Met | ATEX, CSA, DNV, GL, GOSTVDE 0304-T21, IEC 60216-1, IECEx, LR, RoHS Compliant, UL |
