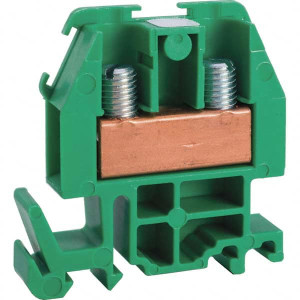

Square D 600 VAC, 60 Amp, -40 to 275°F, DIN Rail Mount, Nylon Standard Terminal Block 2 Contacts, Copper, 22 to 8 AWG Compatibility, 1.82 Inch High x 1.72 Inch Deep 9080GRG6 - 69682193
Brand: Square D by Schneider Electric- SKU:
- 69682193
- ID:
- 591216
$6.05
Square D 600 VAC, 60 Amp, -40 to 275°F, DIN Rail Mount, Nylon Standard Terminal Block 2 Contacts, Copper, 22 to 8 AWG Compatibility, 1.82 Inch High x 1.72 Inch Deep
Manufacturer Part #: 9080GRG6
S/N: 69682193
UNSPSC: 39121410
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Block Type | Standard | ||
| Mounting Type | DIN Rail Mount | ||
| Voltage | 600 VAC | ||
| Amperage | 60 | ||
| Number of Contacts | 2 | ||
| Number of Rows | 1 | ||
| Maximum Compatible Wire Size (AWG) | 8 | ||
| Minimum Compatible Wire Size (AWG) | 22 | ||
| Contact Material | Copper | ||
| Block Material | Nylon | ||
| Block Color | Green | ||
| Maximum Operating Temperature (F) | 275 | ||
| Minimum Operating Temperature (F) | -40 | ||
| Overall Height (Decimal Inch) | 1.8200 | ||
| Standards Met | CE Marked, CSA Certified File | LR62144 Class 6228 01, RoHS Compliant, UL Listed File | E60616 CCN XCFR2 |
