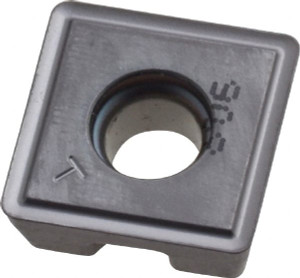

Iscar SOMT 160512-DT IC908 Carbide Indexable Drill Insert TiAlN Finish, 16mm Inscribed Circle, 5.56mm Thick, 1.2mm Corner Radius, 90° Square 5505439 - 69740892
Brand: Iscar- SKU:
- 69740892
- ID:
- 655749
$29.37
Iscar SOMT 160512-DT IC908 Carbide Indexable Drill Insert TiAlN Finish, 16mm Inscribed Circle, 5.56mm Thick, 1.2mm Corner Radius, 90° Square
Manufacturer Part #: 5505439
S/N: 69740892
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SOMT |
| Insert Material | Carbide |
| Manufacturer Grade | IC908 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Inscribed Circle (mm) | 16.00 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.2 |
| Chipbreaker | DT |
| Series | DR-TWIST |
| Material Grade | C1, C2, C6, C7 |
| Coating Process | PVD |
| Shape | Square |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Insert Size | 160512 |
| Width (mm - 2 Decimals) | 16 |
| Length (Mm) | 16 |
| Width (Decimal Inch - 4 Decimals) | 0.629 |
| Length (Decimal Inch - 4 Decimals) | 0.629 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Coating/Finish | TiAlN |
| Insert Size Code | 16 |
| UNSPSC Code | 23242105 |
