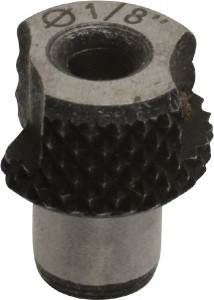

Boneham Type SF, 1/8" Inside Diam, Head, Slip Fixed Drill Bushing 1/4" Body Outside Diam, 1/4" Length Under Head, Steel, LS-TW-2 Compatible SFT164DV - 70016837

Boneham Type SF, 1/8" Inside Diam, Head, Slip Fixed Drill Bushing 1/4" Body Outside Diam, 1/4" Length Under Head, Steel, LS-TW-2 Compatible SFT164DV - 70016837

Brand:   Boneham
SKU:
70016837
ID:
705540
callling
$18.79
Current Stock:
Adding to cart… The item has been added

Boneham

Boneham Type SF, 1/8" Inside Diam, Head, Slip Fixed Drill Bushing 1/4" Body Outside Diam, 1/4" Length Under Head, Steel, LS-TW-2 Compatible

Manufacturer Part #: SFT164DV

S/N: 70016837

UNSPSC: 31171603

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Installation MethodSlip-Fixed
Bushing Industry CodeSF
Inside Diameter (Inch)1/8
Inside Diameter (Decimal Inch)0.1250
Body Outside Diameter (Inch)1/4
Body Outside Diameter (Decimal Inch)0.2500
Length Under Head (Inch)1/4
Head or HeadlessHead
Bushing MaterialSteel
Head Outside Diameter (Inch)7/16
Head Height (Inch)1/4
Renewable BushingYes
Hardness60 to 65 HRC
Inside Diameter Tolerance+0.0001 to +0.0004 in
CounterboredNo
Lock Screw CompatibilityLS-TW-2
StandardsANSI
