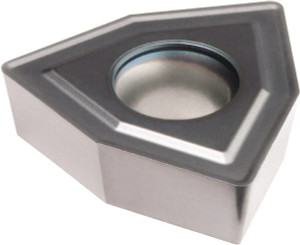

Kennametal DFT070408HP KCU40 Carbide Indexable Drill Insert TiN/TiAlN Finish, 12mm Inscribed Circle, 3/16" Thick, 1/32" Corner Radius, Neutral Cut, 84° Trigon 5066146 - 70087432
Brand: Kennametal- SKU:
- 70087432
- ID:
- 655893
$40.63
Kennametal DFT070408HP KCU40 Carbide Indexable Drill Insert TiN/TiAlN Finish, 12mm Inscribed Circle, 3/16" Thick, 1/32" Corner Radius, Neutral Cut, 84° Trigon
Manufacturer Part #: 5066146
S/N: 70087432
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | DFT |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU40 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Cutting Direction | Neutral |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Chipbreaker | HP |
| Coating Process | PVD |
| Shape | Trigon |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Relief Angle | 8 |
| Insert Size | 070408 |
| Length (Mm) | 7.94 |
| Length (Decimal Inch - 4 Decimals) | 0.3126 |
| Included Angle Degree | 84 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiN, TiAlN |
