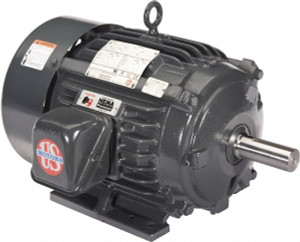

U.S. Motors 2 hp, TEFC Enclosure, No Thermal Protection, 1750, 1430 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 145 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings H2P2D - 70313234
Brand: U.S. Motors- SKU:
- 70313234
- ID:
- 573733
$794.89
U.S. Motors 2 hp, TEFC Enclosure, No Thermal Protection, 1750, 1430 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 145 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings, 6-5.7/2.8 Full Load Amps, F Class Insulation
Manufacturer Part #: H2P2D
S/N: 70313234
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Three Phase Premium Efficient |
| Phase | 3 |
| Enclosure Style | TEFC |
| Horsepower | 2 |
| Name Plate RPMs | 1750 |
| 1430 | |
| Voltage | 208 to 230, 460, 190, 380V |
| Frequency (Hz - 0 Decimals) | 60 |
| 50 | |
| Frame Size | 145 |
| Mount Style | Horizontal-Footed |
| Mount Type | Horizontal-Footed |
| Bearing Type | Double Shielded Ball |
| Number Of Phases | 1 |
| Full Load Amperage | 6 to 5.7/2.8 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Service Factor Rating | 1.00 |
| Motor Rotation | Dual |
| Applications | General Equipment, Harsh Environment |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
