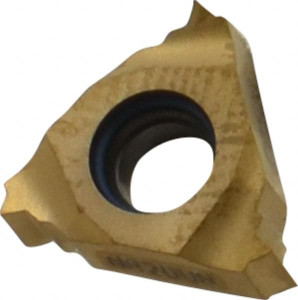

Seco Tools 11NR20UN CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, RH Internal UN Thread, 20 TPI, 1/4" Inscribed Circle, 0.1181" Thick 00046044 - 70481387
Brand: Seco Tools- SKU:
- 70481387
- ID:
- 665640
$50.05
Seco Tools 11NR20UN CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, RH Internal UN Thread, 20 TPI, 1/4" Inscribed Circle, 0.1181" Thick
Manufacturer Part #: 00046044
S/N: 70481387
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | 11NR |
| Insert Material | Carbide |
| Manufacturer Grade | CP500 |
| Threads Per Inch | 20 |
| Thread Type | Internal |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Series | Snap-Tap |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | K, M, N, P, S |
| Standards | ISO |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0310 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0310 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
| UNSPSC Code | 23291804 |
