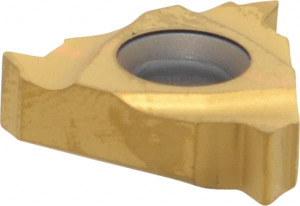

Seco Tools 16ER11UN CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, RH External UN Thread, 11 TPI, 3/8" Inscribed Circle, 0.1366" Thick 00049791 - 70481742
Brand: Seco Tools- SKU:
- 70481742
- ID:
- 665655
$56.03
Seco Tools 16ER11UN CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, RH External UN Thread, 11 TPI, 3/8" Inscribed Circle, 0.1366" Thick
Manufacturer Part #: 00049791
S/N: 70481742
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | 16ER |
| Insert Material | Carbide |
| Manufacturer Grade | CP500 |
| Threads Per Inch | 11 |
| Thread Type | External |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Series | Snap-Tap |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0110 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | K, M, N, P, S |
| Standards | ISO |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0470 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0590 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1366 |
| UNSPSC Code | 23291804 |
