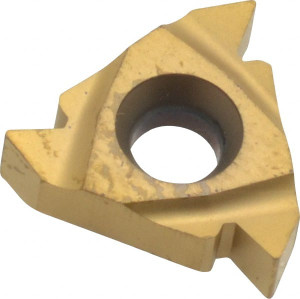

Seco Tools 16ERG60 CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, RH External Partial Profile 60° Thread, 14-8 TPI, 3/8" Inscribed Circle, 0.1366" Thick 00050209 - 70482542
Brand: Seco Tools- SKU:
- 70482542
- ID:
- 665691
$50.05
Seco Tools 16ERG60 CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, RH External Partial Profile 60° Thread, 14-8 TPI, 3/8" Inscribed Circle, 0.1366" Thick
Manufacturer Part #: 00050209
S/N: 70482542
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | 16ER |
| Insert Material | Carbide |
| Manufacturer Grade | CP500 |
| Threads Per Inch | 14-8 |
| Thread Type | External |
| Pitch (mm) | 1.75-3.00 |
| Thread Standard | Partial Profile 60 Degree |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Series | Snap-Tap |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | K, M, P, S |
| Standards | ISO |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0430 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0590 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1366 |
| UNSPSC Code | 23291804 |
