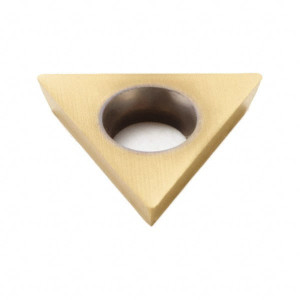

Seco Tools TDAB 1.21.50.5 CP500 Carbide Turning Insert TiAlN/TiN Finish, Neutral, 5/32" Inscribed Circle, 0.008" Corner Radius, 3/64" Thick, 60° Triangle 00098798 - 70485685
Brand: Seco Tools- SKU:
- 70485685
- ID:
- 676555
$37.33
Seco Tools TDAB 1.21.50.5 CP500 Carbide Turning Insert TiAlN/TiN Finish, Neutral, 5/32" Inscribed Circle, 0.008" Corner Radius, 3/64" Thick, 60° Triangle
Manufacturer Part #: 00098798
S/N: 70485685
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Insert Style | TDAB |
| Insert Size Code | 1.21.50.5 |
| Insert Material | Carbide |
| Material Grade | M10, M20, M30 |
| Manufacturer Grade | CP500 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Hole Diameter (Decimal Inch) | 0.0929 |
| Maximum Depth of Cut (Decimal Inch) | 0.2598 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (Inch) | 1/128 |
| Relief Angle | 15 |
| Rake | Positive |
| Chipbreaker | Flat Top |
| Series | TDAB-Flat Top |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel, Cast Iron, Super-alloys & Titanium |
| Secondary Workpiece Material Code | P, K, S |
| Iso Code | TDAB06T002 |
| Standards | ANSI, ISO |
| Rake Angle | 0 |
| Manufacturers Catalog Number | 00098798 |
| Length (Decimal Inch - 4 Decimals) | 0.2677 |
| Lead Angle | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.2677 |
| Coating/Finish | TiAlN, TiN |
| UNSPSC Code | 23242105 |
