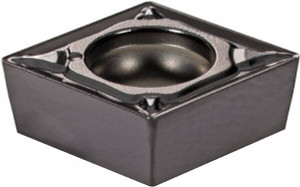

Tungaloy ccmt09t304-ps ah725 Carbide Turning Insert 9.7mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond 6856764 - 70506613
Brand: Tungaloy- SKU:
- 70506613
- ID:
- 678004
$17.88
Tungaloy ccmt09t304-ps ah725 Carbide Turning Insert 9.7mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond
Manufacturer Part #: 6856764
S/N: 70506613
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80degree |
| Manufacturer Grade | AH725 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CCMT-PS |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8in |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (mm) | 9.70 |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Iso Code | CCMT09T304-PS |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6856764 |
| Material Grade | P15, P30, M15, M30, K25, K30, S15, S25 |
| Coating Classification | PVD |
| Chip Breaker | PS |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCMT 32.51 PS |
| Width (Decimal Inch - 4 Decimals) | 0.3750in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
