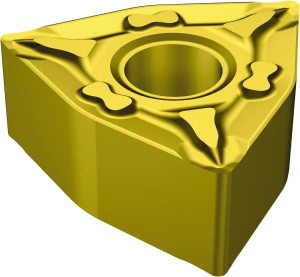

Sandvik Coromant WNMG432-MF 2025 Carbide Turning Insert TiCN/AI2O3/TiN Finish, 7.89mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon 5756488 - 70651153
Brand: Sandvik Coromant- SKU:
- 70651153
- ID:
- 675768
$25.72
Sandvik Coromant WNMG432-MF 2025 Carbide Turning Insert TiCN/AI2O3/TiN Finish, 7.89mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon
Manufacturer Part #: 5756488
S/N: 70651153
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80 |
| Manufacturer Grade | 2025 |
| Coating/Finish | TiCN, AI2O3, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | T-Max P |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (mm) | 7.89 |
| Insert Length (Decimal Inch) | 0.3105 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | WNMG 08 04 08-MF 2025 |
| Chip Breaker | MF |
| UNSPSC Code | 23242105 |
| Insert Size Code | 0804 |
