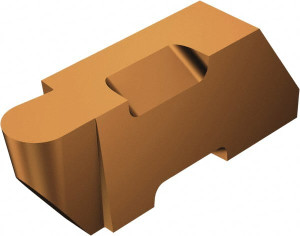

Sandvik Coromant TLR3031L 1125 Carbide Grooving Insert TiAlN Finish, LH, 1.57mm Cutting Width, 2.39mm Max Depth, Series Top Lok 5753460 - 70708003
Brand: Sandvik Coromant- SKU:
- 70708003
- ID:
- 651013
$64.40
Sandvik Coromant TLR3031L 1125 Carbide Grooving Insert TiAlN Finish, LH, 1.57mm Cutting Width, 2.39mm Max Depth, Series Top Lok
Manufacturer Part #: 5753460
S/N: 70708003
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | TLR |
| Cutting Width (Decimal Inch) | 0.0620 |
| Cutting Width (mm) | 1.57 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 2.39 |
| Insert Material | Solid Carbide |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Rake | Positive |
| Insert Size | 3L |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | Yes |
| Series | Top Lok |
| Coating Process | PVD |
| Iso Code | TLR-3031L 1125 |
| Minimum Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturers Catalog Number | TLR-3031L 1125 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| UNSPSC Code | 23242105 |
| Chip Breaker | TLR |
| Insert Seat Size | 3 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0620 |
| Coating/Finish | TiAlN |
