WIDIA Straight Flute Tap: 5/8-11 UNC, 4 Flutes, Bottoming, 3B Class of Fit, High Speed Steel, Bright/Uncoated 1.812" Thread Length, 3.812" OAL, Right Hand Thread, H3, Series 5303/2303 2749456 - 70741285
Brand: WIDIA- SKU:
- 70741285
- ID:
- 780889
$54.55

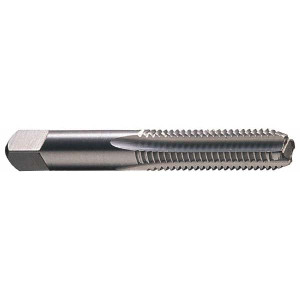

WIDIA Straight Flute Tap: 5/8-11 UNC, 4 Flutes, Bottoming, 3B Class of Fit, High Speed Steel, Bright/Uncoated 1.812" Thread Length, 3.812" OAL, Right Hand Thread, H3, Series 5303/2303
Manufacturer Part #: 2749456
S/N: 70741285
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tap Type | Standard |
| Thread Size (Inch) | 5/8-11 |
| Overall Length (Decimal Inch) | 3.8120 |
| Thread Standard | UNC |
| Chamfer | Bottoming |
| Material | High-Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 3B |
| Thread Limit | H3 |
| Number Of Flutes | 4 |
| Oversize | No |
| Threads per Inch | 11 |
| Thread Pitch (Decimal Inch) | 0.0910 |
| Thread Length (Decimal Inch) | 1.8120 |
| Thread Depth (Decimal Inch) | 1.8130 |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Tapping Depth (Decimal Inch) | 1.8130 |
| Square Length (Decimal Inch) | 0.5625 |
| Square Size (Decimal Inch) | 0.3600 |
| Material Application | Cast Iron, Non-Ferrous Metal |
| Series | 5303, 2303 |
| Shank Length (Decimal Inch) | 2.0000 |
| UNSPSC Code | 23241600 |
