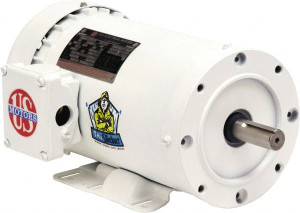

U.S. Motors 7-1/2 hp, TEFC Enclosure, No Thermal Protection, 1765, 1450 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 213 Frame, C-Face with Base Mount, 1 Speed, Double Sealed Ball Bearings WD7P2DC - 70855390
Brand: U.S. Motors- SKU:
- 70855390
- ID:
- 573912
$2,285.26
U.S. Motors 7-1/2 hp, TEFC Enclosure, No Thermal Protection, 1765, 1450 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 213 Frame, C-Face with Base Mount, 1 Speed, Double Sealed Ball Bearings, 20-18.2/9.1 Full Load Amps, F Class Insulation
Manufacturer Part #: WD7P2DC
S/N: 70855390
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Three Phase Premium Efficient |
| Enclosure Style | TEFC |
| Horsepower | 7-1/2 |
| Name Plate RPMs | 1765 |
| 1450 | |
| Voltage | 208 to 230, 460, 190, 380V |
| Frequency (Hz - 0 Decimals) | 60 |
| 50 | |
| Frame Size | 213 |
| Mount Style | C-Face with Base |
| Mount Type | C-Face with Base |
| Bearing Type | Double Sealed Ball |
| Full Load Amperage | 20 to 18.2/9.1 |
| Insulation Class | F |
| Frame Material | Steel |
| Service Factor Rating | 1.00 |
| Applications | Food Processing |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
