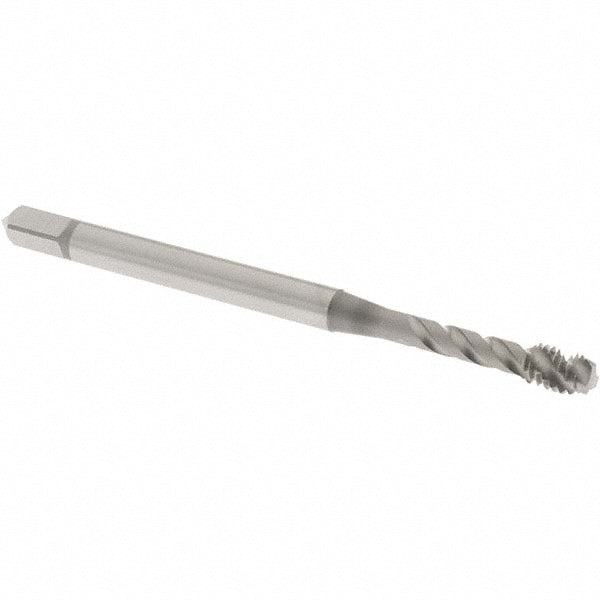

OSG Spiral Flute Tap: M4x0.70 Metric Coarse, 3 Flutes, Modified Bottoming, 6H Class of Fit, Vanadium High Speed Steel, Nitride Coated 3/4" Thread Length, 2-1/8" OAL, Right Hand Thread, D4, Series 13119 1311900303 - 70866330
Brand: OSG USA, INC.- SKU:
- 70866330
- ID:
- 772197
$43.54
OSG Spiral Flute Tap: M4x0.70 Metric Coarse, 3 Flutes, Modified Bottoming, 6H Class of Fit, Vanadium High Speed Steel, Nitride Coated 3/4" Thread Length, 2-1/8" OAL, Right Hand Thread, D4, Series 13119
Manufacturer Part #: 1311900303
S/N: 70866330
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M4x0.70 |
| Thread Standard | Metric Coarse |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Thread Limit | D4 |
| Class Of Fit | 6H |
| Coating/Finish | Nitride |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Aluminum |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 50 |
| Overall Length (Inch) | 2-1/8 |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Length (mm) | 5.00 |
| Overall Length (Decimal Inch) | 2.9380 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Neck Length (Decimal Inch) | 1.2520 |
| Flute Style | Spiral |
| Series | 13119 |
| UNSPSC Code | 27112806 |
