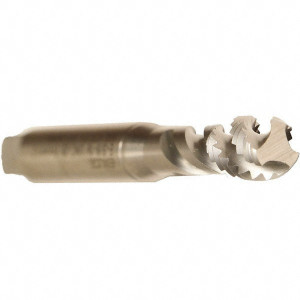

EMUGE-FRANKEN M3x0.50 Metric Coarse/EGM, 3 Flute, 45° Helix, Bottoming Chamfer, Bright Finish, Cobalt Spiral Flute STI Tap Right Hand Flute, 2.4803" OAL, 0.1772" Shank Dia, 0.1969" Thread Length, Enorm Z B0513500.0966 - 71420343
Brand: EMUGE-FRANKEN- SKU:
- 71420343
- ID:
- 768026
$99.04
EMUGE-FRANKEN M3x0.50 Metric Coarse/EGM, 3 Flute, 45° Helix, Bottoming Chamfer, Bright Finish, Cobalt Spiral Flute STI Tap Right Hand Flute, 2.4803" OAL, 0.1772" Shank Diam, 0.1969" Thread Length, 6H (mod) Class of Fit, Series Enorm Z
Manufacturer Part #: B0513500.0966
S/N: 71420343
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M3x0.5 |
| Overall Length (Decimal Inch) | 2.48030 |
| Overall Length (mm) | 63.0000 |
| Helix Angle | 45.0 |
| Chamfer | Bottoming |
| Thread Standard | Metric Coarse |
| Flute Direction | Right Hand |
| Material | Cobalt |
| Thread Length (mm) | 5.000 |
| Shank Diameter (mm) | 4.5000 |
| Material Application | Copper, Stainless Steel, Steel |
| Series | Enorm Z |
| Number Of Flutes | 3 |
| Class Of Fit | 6H (mod) |
