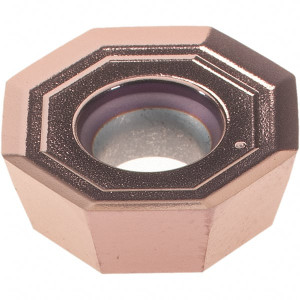

Walter Tools ODHT0605ZZN-G88 WXN15 Carbide Milling Insert TiCN Plus Finish, 0.2362" Long x 0.2189" Thick 5021889 - 71712921

Walter Tools ODHT0605ZZN-G88 WXN15 Carbide Milling Insert TiCN Plus Finish, 0.2362" Long x 0.2189" Thick 5021889 - 71712921

Brand:   Walter Tools
SKU:
71712921
ID:
663515
callling
$47.05
Current Stock:
Adding to cart… The item has been added

Walter Tools

Walter Tools ODHT0605ZZN-G88 WXN15 Carbide Milling Insert TiCN Plus Finish, 0.2362" Long x 0.2189" Thick

Manufacturer Part #: 5021889

S/N: 71712921

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleODHT
Insert Size06
Insert MaterialSolid Carbide
Insert ShapeOctagon
Manufacturer GradeWXN15
Corner Radius (Decimal Inch)0.0315
Corner Radius (mm)0.80
Number Of Cutting Edges8
Thickness (Decimal Inch - 4 Decimals)0.2190
Coating/FinishTiCN
Relief Angle15.00
Maximum Depth of Cut (Decimal Inch)0.2590
Insert Size Code0605
Material GradeN15
Width (Inch)5/8
Length (Inch)5/8
Thickness (Inch)7/32
Inscribed Circle (Inch)5/8
Inscribed Circle (Decimal Inch)0.6252
Thickness Range (Decimal Inch)0.2000 to 0.2200
Corner Radius (Inch)1/32
Inscribed Circle Range (Decimal Inch)0.6000 to 0.7000
Length Range (Decimal Inch)0.6000 to 0.6500
Insert HandNeutral
SeriesODHT
Coating ProcessPVD
RakePositive
Primary Workpiece MaterialNon-Ferrous Metal
Primary Workpiece Material CodeN
Ansi CodeODHT0605ZZN-G88 WXN15
Iso CodeODHT0605ZZN-G88 WXN15
StandardsANSI, ISO
Rake Angle20
Cutting Edge StyleSharp
Manufacturers Catalog NumberODHT0605ZZN-G88
Cutter Series CompatibilityF2010, M5004
Chip BreakerG88
Material ApplicationNon-Ferrous Metal
UNSPSC Code23291601
Insert Holding MethodScrew
Coating ClassificationPVD
Single or Double Sided InsertSingle
Included Angle Degree135
Width (Decimal Inch - 4 Decimals)0.2590
Width (mm - 2 Decimals)6.58
Multi-Use ToolYes
Length (Decimal Inch - 4 Decimals)0.6252
