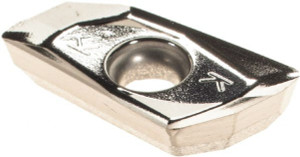

Walter Tools ZDGT150408R-K85 WK10 Carbide Milling Insert Uncoated, 0.6378" Long x 0.1874" Thick x 0.4134" Wide 5004877 - 71719157
Brand: Walter Tools- SKU:
- 71719157
- ID:
- 663518
$40.17
Walter Tools ZDGT150408R-K85 WK10 Carbide Milling Insert Uncoated, 0.6378" Long x 0.1874" Thick x 0.4134" Wide
Manufacturer Part #: 5004877
S/N: 71719157
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | ZDGT |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | WK10 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6380 |
| Insert Size Code | 150408 |
| Material Grade | N10 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.4130 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Series | ZDGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | ZDGT150408R-K85 WK10 |
| Iso Code | ZDGT150408R-K85 WK10 |
| Standards | ANSI, ISO |
| Rake Angle | 25 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | ZDGT150408R-K85 |
| Cutter Series Compatibility | M2131 |
| Chip Breaker | K85 |
| Material Application | Non-Ferrous Metal |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4130 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6380 |
