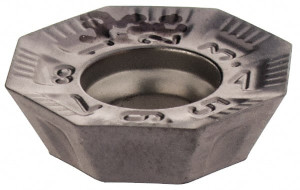

Iscar OFMT 05T305TN-76 IC928 Carbide Milling Insert TiAlN Finish, 0.1575" Thick 5698918 - 71944821
Brand: Iscar- SKU:
- 71944821
- ID:
- 660430
$22.80
Iscar OFMT 05T305TN-76 IC928 Carbide Milling Insert TiAlN Finish, 0.1575" Thick
Manufacturer Part #: 5698918
S/N: 71944821
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | OFMT |
| Insert Size | 05 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1570 |
| Coating/Finish | TiAlN |
| Relief Angle | 25 |
| Maximum Depth of Cut (Decimal Inch) | 0.1600 |
| Insert Size Code | 05T305 |
| Material Grade | C1, C2, C5, C6 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | HELIOCTO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.1600 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Secondary Workpiece Material Code | S |
| Ansi Code | OFMT 05T305TN-76 IC928 |
| Iso Code | OFMT 05T305TN-76 |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | OFMT 05T305TN-76 IC928 |
| Chip Breaker | 76 |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
