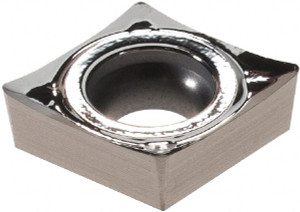

Sumitomo CCGT21.51NAG H1 Carbide Turning Insert Uncoated, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond 1033356 - 71969158
Brand: Sumitomo- SKU:
- 71969158
- ID:
- 677428
$19.17
Sumitomo CCGT21.51NAG H1 Carbide Turning Insert Uncoated, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond
Manufacturer Part #: 1033356
S/N: 71969158
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80.0 |
| Manufacturer Grade | H1 |
| Coating/Finish | Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Series | CC |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2520 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | CCGT21.51NAG |
| Iso Code | CCGT060204N-AG |
| Standards | ANSI, ISO 13399 |
| Material Grade | C3 |
| Chip Breaker | NAG |
| Rake Angle | 20 |
| Insert Size Code | 21.51 |
