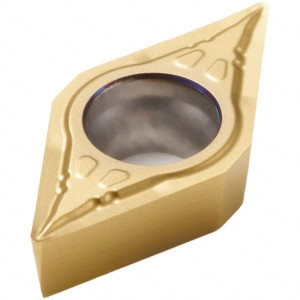

Seco Tools DCMT 32.52-F1 TS2000 Carbide Turning Insert TiAlN/TiN Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 55° Diamond 02615883 - 72493109
Brand: Seco Tools- SKU:
- 72493109
- ID:
- 676054
$23.97
Seco Tools DCMT 32.52-F1 TS2000 Carbide Turning Insert TiAlN/TiN Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 55° Diamond
Manufacturer Part #: 02615883
S/N: 72493109
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55degree |
| Manufacturer Grade | TS2000 |
| Coating/Finish | TiAlN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | DCMT-F1 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond 55 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (Decimal Inch) | 0.4252 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8in |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9134 |
| Primary Workpiece Material | Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | M, S |
| Secondary Workpiece Material | Steel, Cast Iron, Hard Material |
| Secondary Workpiece Material Code | P, K, H |
| Iso Code | DCMT11T308-F1 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 02615883 |
| Material Grade | M05, M10, S10, S15 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 55degree |
| Coating Classification | PVD |
| Chip Breaker | F1 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | DCMT32.52-F1 |
| Width (Decimal Inch - 4 Decimals) | 0.3750in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Turning, Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
