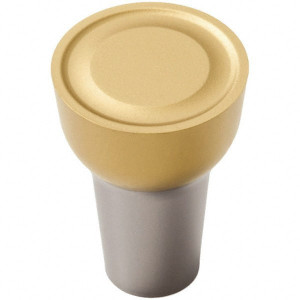

Seco Tools RCGS 2-46 TS2000 Carbide Profiling Insert TiAlN/TiN Finish, Neutral, 23/64" Thick 02616018 - 72493836
Brand: Seco Tools- SKU:
- 72493836
- ID:
- 669243
$45.42
Seco Tools RCGS 2-46 TS2000 Carbide Profiling Insert TiAlN/TiN Finish, Neutral, 23/64" Thick
Manufacturer Part #: 02616018
S/N: 72493836
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | RCGS |
| Insert Size Code | 2 |
| Insert Material | Carbide |
| Material Grade | M01, M10, S01, S10, S20, H30, H40 |
| Width (Inch) | 1/4 |
| Manufacturer Grade | TS2000 |
| Thickness (Inch) | 23/64 |
| Insert Height (Decimal Inch) | 0.3594 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Insert Holding Method | Clamp, Pin |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.1250 |
| Included Angle | 360 |
| Relief Angle | 7 |
| Chipbreaker | 46 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Series | T-Lock |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2500 |
| Insert Length (Inch) | 1/4 |
| Number Of Cutting Edges | 4 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Primary Workpiece Material | Stainless Steel, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | M, S, H |
| Secondary Workpiece Material Code | M |
| Iso Code | RCGS6.35-46 |
| Standards | RCGS2-46, RCGS6.35-46 |
| Side Length (Decimal Inch) | 0.2500 |
| Shape | Round |
| Applications | Profiling, Turning |
| MSC/Manufacturer Number | RCGS2-46 |
| Coating Classification | PVD |
| Coating/Finish | TiAlN, TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.3594 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| UNSPSC Code | 23242105 |
