Seco Tools SNMG 543-MR4 TS2500 Carbide Turning Insert TiAlN/TiN Finish, 5/8" Inscribed Circle, 3/64" Corner Radius, 90° Square 02615973 - 72494081
Brand: Seco Tools- SKU:
- 72494081
- ID:
- 676614
$40.35

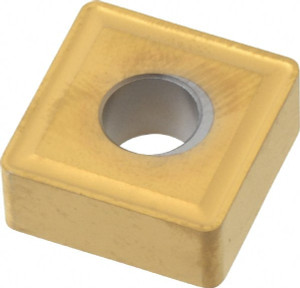

Seco Tools SNMG 543-MR4 TS2500 Carbide Turning Insert TiAlN/TiN Finish, 5/8" Inscribed Circle, 3/64" Corner Radius, 90° Square
Manufacturer Part #: 02615973
S/N: 72494081
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 90degree |
| Manufacturer Grade | TS2500 |
| Coating/Finish | TiAlN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | SNMG-MR4 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.5787 |
| Insert Holding Method | Clamp, Pin, Lever Lock |
| Width (Inch) | 5/8in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6250 |
| Insert Length (Inch) | 5/8 |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Steel, Stainless Steel, Cast Iron |
| Secondary Workpiece Material Code | P, M, K |
| Iso Code | SNMG150612-MR4 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 02615973 |
| Material Grade | S10, S20 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 90degree |
| Coating Classification | PVD |
| Chip Breaker | MR4 |
| Cutting Edge Style | T-Land |
| Industry Standard Number | SNMG543-MR4 |
| Width (Decimal Inch - 4 Decimals) | 0.6250in |
| Width (mm - 2 Decimals) | 15.88 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 543 |
