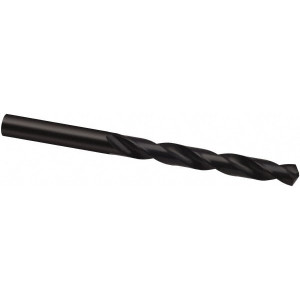

Guhring 1.57mm 118° Cobalt Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, 43mm OAL, Cone Relief Point 9003050015700 - 72613680
Brand: Guhring- SKU:
- 72613680
- ID:
- 719488
$11.35
Guhring 1.57mm 118° Cobalt Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, 43mm OAL, Cone Relief Point
Manufacturer Part #: 9003050015700
S/N: 72613680
UNSPSC: 23241634
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (mm) | 1.57 |
| Drill Bit Size (Decimal Inch) | 0.0618 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron, Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | K, P |
| Shank Diameter (Decimal Inch) | 0.0618 |
| Overall Length (mm) | 43.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 20.00 |
| Series | 305 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 1.57 |
| Maximum Drilling Depth (Decimal Inch) | 0.6950 |
| Maximum Drilling Depth (mm) | 17.65 |
| Shank Length (mm) | 23.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
