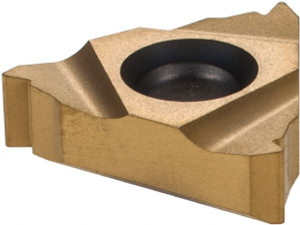

Seco Tools 16EL 16UN CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, LH External UN Thread, 16 TPI, 9.53mm Inscribed Circle, 3.47mm Thick 00046335 - 72651227

Seco Tools 16EL 16UN CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, LH External UN Thread, 16 TPI, 9.53mm Inscribed Circle, 3.47mm Thick 00046335 - 72651227

Brand:   Seco Tools
SKU:
72651227
ID:
665700
callling
$50.05
Current Stock:
Adding to cart… The item has been added

Seco Tools

Seco Tools 16EL 16UN CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, LH External UN Thread, 16 TPI, 9.53mm Inscribed Circle, 3.47mm Thick

Manufacturer Part #: 00046335

S/N: 72651227

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style16EL
Insert Size Code16
Insert MaterialSolid Carbide
Manufacturer GradeCP500
Threads Per Inch16
Thread TypeExternal
Thread StandardUN
Insert HandLeft Hand
Thickness (mm)3.47
Included Angle60
SeriesSnap Tap
Coating ProcessPVD
Inscribed Circle (mm)9.53
Inscribed Circle (Decimal Inch)0.3752
Corner Radius (Decimal Inch)0.2100
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeK, M, N, P, S
StandardsISO
Thickness (Decimal Inch - 4 Decimals)0.1366
Coating/FinishCoated
