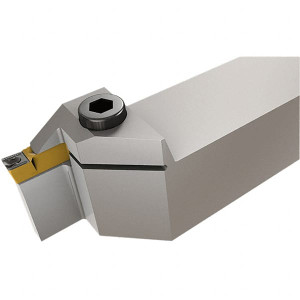

Iscar 0.157" to 0.187" Width, External Left Hand Indexable Grooving Toolholder 7" OAL, 1-1/4" x 1-1/4" Shank, Uses DG.. 4003, GRIP 4.. Inserts, HELI Toolholder, Series Heli-Grip 2500611 - 72736044
Brand: Iscar- SKU:
- 72736044
- ID:
- 685366
$377.33
Iscar 0.157" to 0.187" Width, External Left Hand Indexable Grooving Toolholder 7" OAL, 1-1/4" x 1-1/4" Shank, Uses DG.. 4003, GRIP 4.. Inserts, HELI Toolholder, Series Heli-Grip
Manufacturer Part #: 2500611
S/N: 72736044
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Toolholder Style | HELI |
| Maximum Groove Width (Decimal Inch) | 0.1870 |
| Insert Holding Method | Clamp |
| Insert Compatibility | DG.. 4003, GRIP 4.. |
| Compatible Insert Size Code | DG.-4, GRIP-4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Heli-Grip |
| Shank Length (Decimal Inch) | 5.3000 |
| Overall Length (Decimal Inch) | 7.0000 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.9700 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1900 |
| Head Length (Decimal Inch) | 1.7000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Standards | ISO 13399 |
| Complete Insert Compatibility | DGL 4003C-4D, DGN 4003C, DGN 4003J, DGN 4003JT, DGR 4003C-4D, GRIP 4002Y, GRIP 4004Y, GRIP 4020Y, GRIP 476-080Y, GRIP 476-238Y |
| Coolant Through | No |
