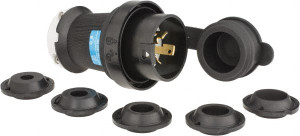

Hubbell Wiring Device-Kellems 250 VAC 30A NEMA L6-30P Industrial Twist Lock Plug 2 Poles, 3 Wires, 1 Phase, IP66, Self-Grounding, 0.36 to 0.93" Cord Diam, Black/White HBL2621SW - 73122822
Brand: Hubbell Wiring Device-Kellems- SKU:
- 73122822
- ID:
- 597621
$232.27
Hubbell Wiring Device-Kellems 250 VAC 30A NEMA L6-30P Industrial Twist Lock Plug 2 Poles, 3 Wires, 1 Phase, IP66, Self-Grounding, 0.36 to 0.93" Cord Diam, Black/White
Manufacturer Part #: HBL2621SW
S/N: 73122822
UNSPSC: 39121400
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Connector Type | Plug |
| Grade | Industrial |
| Material | Thermoplastic Elastomer |
| Grounding Style | Self-Grounding |
| Amperage | 30 |
| Voltage | 250 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Color | Black, White |
| Resistance Features | Water-Tight |
| Minimum Cord Diameter (mm) | 9.00 |
| Minimum Cord Diameter (Decimal Inch) | 0.3600 |
| Maximum Cord Diameter (mm) | 24.00 |
| Maximum Cord Diameter (Decimal Inch) | 0.9300 |
| Number Of Phases | 1 |
| Ingress Protection Rating | IP66 |
| Standards | CSA Certified, NEMA 4/4X/12, UL Federal Specification |
| Nema Configuration | L6-30P |
