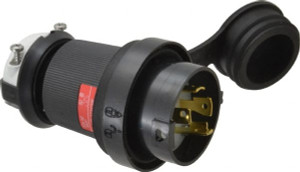

Hubbell Wiring Device-Kellems 480 VAC 30A NEMA L16-30P Industrial Twist Lock Plug 3 Poles, 4 Wires, 3 Phase, IP66, Self-Grounding, 0.35 to 1.15" Cord Diam, Black/White HBL2731SW - 73123069
Brand: Hubbell Wiring Device-Kellems- SKU:
- 73123069
- ID:
- 597627
$258.05
Hubbell Wiring Device-Kellems 480 VAC 30A NEMA L16-30P Industrial Twist Lock Plug 3 Poles, 4 Wires, 3 Phase, IP66, Self-Grounding, 0.35 to 1.15" Cord Diam, Black/White
Manufacturer Part #: HBL2731SW
S/N: 73123069
UNSPSC: 39121400
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Connector Type | Plug |
| Grade | Industrial |
| Material | Thermoplastic Elastomer |
| Grounding Style | Self-Grounding |
| Amperage | 30 |
| Voltage | 480 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Color | Black, White |
| Resistance Features | Moisture-Resistant, Water-Tight |
| Minimum Cord Diameter (mm) | 9.00 |
| Minimum Cord Diameter (Decimal Inch) | 0.3500 |
| Maximum Cord Diameter (mm) | 29.00 |
| Maximum Cord Diameter (Decimal Inch) | 1.1500 |
| Number Of Phases | 3 |
| Ingress Protection Rating | IP66 |
| Standards | CSA Certified, NEMA 4/4X/12, UL Federal Specification, UL Listed |
| Nema Configuration | L16-30P |
